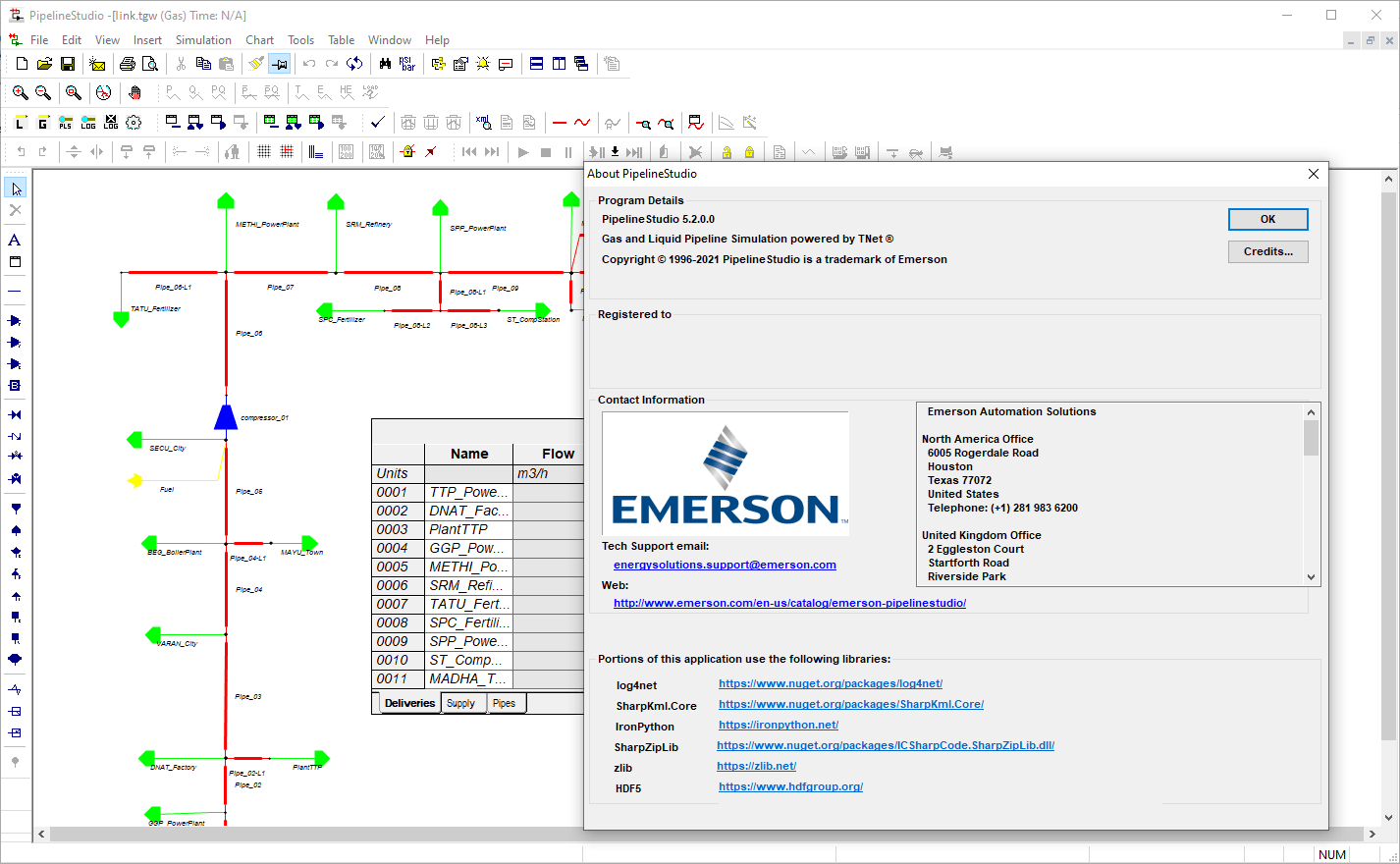

PipelineStudio 5.2

PipelineStudio™ is Emerson’s advanced pipeline simulation software used for designing, planning, and analyzing natural gas and liquid pipeline networks. It provides both steady‑state and transient hydraulic analysis, helping engineers optimize pipeline performance, throughput, and reliability.

Core Capabilities

Steady‑State & Transient Simulation: Models single‑phase fluid flow across gas, liquid, dense phase, and supercritical conditions.
Hydraulic Analysis: Calculates pressure drops, flow rates, surge, water hammer, and line pack management.
Detailed Equipment Models: Includes compressors, pumps, valves, regulators, heaters, coolers, and leak models.
Scenario Planning: Simulates upset conditions (leaks, equipment failures) and survival time analysis.
Future Capacity Forecasting: Determines whether existing networks can meet demand growth without new equipment.
Offline Simulation: Runs interactive or unattended models without disrupting live operations.

PipelineStudio 5.2, released in June 2026, introduced major enhancements for scenario management, planning periods, and maintenance quality assurance workflows. The update focuses on better scenario merging, duplication, confidence ratings, and improved cost/activity tracking.

Key New Features in PipelineStudio 5.2

Scenario Management
- New Scenario tab with project details, drop‑down selection, and color‑coded status.
- Ability to merge scenarios, with options to choose which duplicated records (performance, admin unit, network class) to keep.
- Scenario duplication supported for faster planning iterations.
- Scenario details now include confidence ratings, cost calculations, and hyperlinks to detailed activity panels.
Planning Periods
- Users can create new planning periods (archiving the old one) or delete active periods without scenarios.
- Historical planning periods list updated with sortable pages and financial metrics.
Maintenance Quality Assurance (MQA)
- Related Survey tab shows assigned MQA survey details.
- Drop‑down lists restricted to enforce one‑to‑one relationships between surveys, time periods, and planning periods.
Work Activities & Costs
- Required Work Activities panel shows activities per PAN record with performance measures and admin units.
- Actual Work Activities panel accessible via cost links, showing detailed accomplishments.
- Column renamed from Units Accomplished Per Day → Units Accomplished for clarity.
UI & Workflow Improvements
- Consistent save success messages.
- Confidence rating icons added to scenario pages.
- Multiple performance measures can be added and selected.
